The following images show the upgrade parts made for J.T. Graphics. Some parts were created from scratch, some were decorated existing kit parts.
Overview of some of the parts created for the upgrade set sold by JTGraphics.
Underside of the neck ‘boom’ part in place on the front plate.
New stern plates & impulse engines in place on kit part.

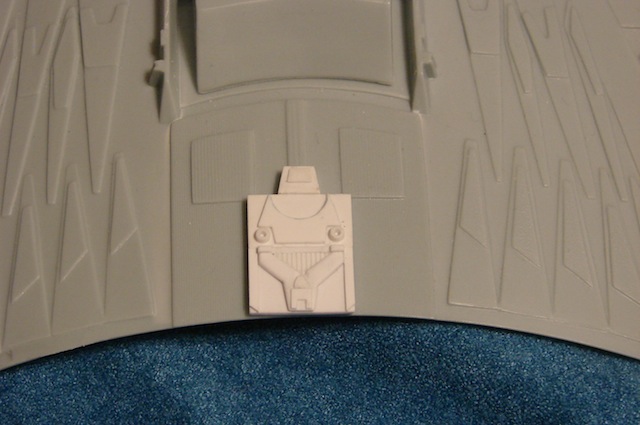

New stern plate parts.

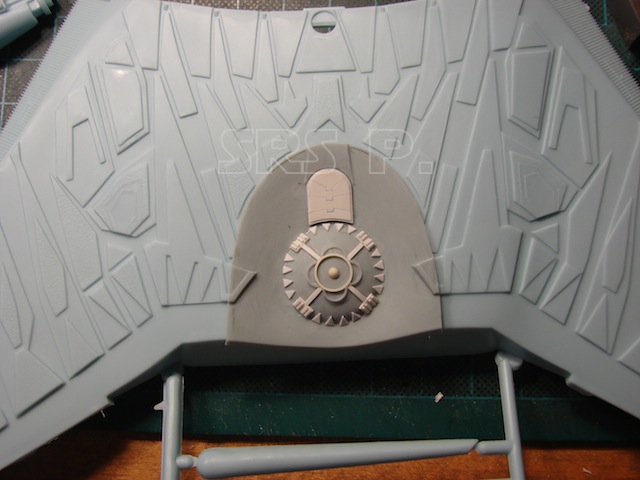

Decorated kit part, front plate.
Decorated kit part.
Decorated neck or ‘boom’ part.
Corner insert ‘box’ for the main hull.
Both corner boxes for the main hull.
One of the disruptors.
Close up of the disruptor.

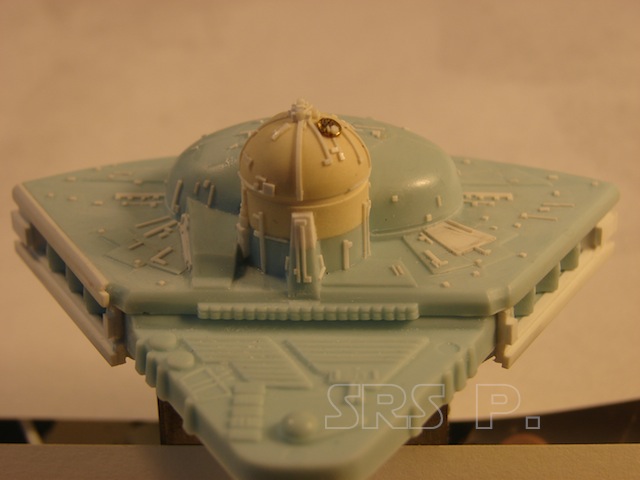

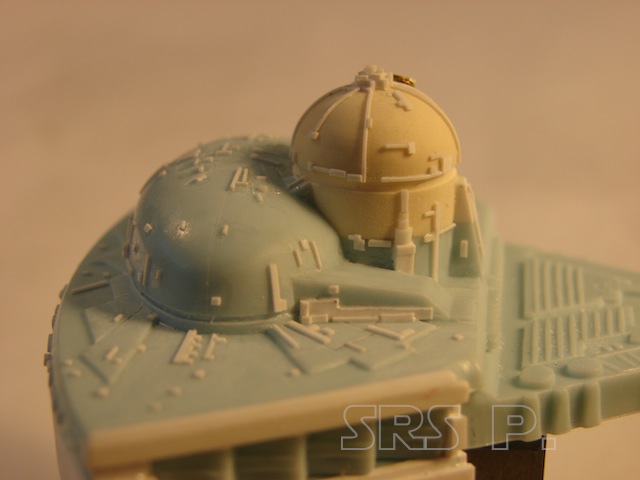

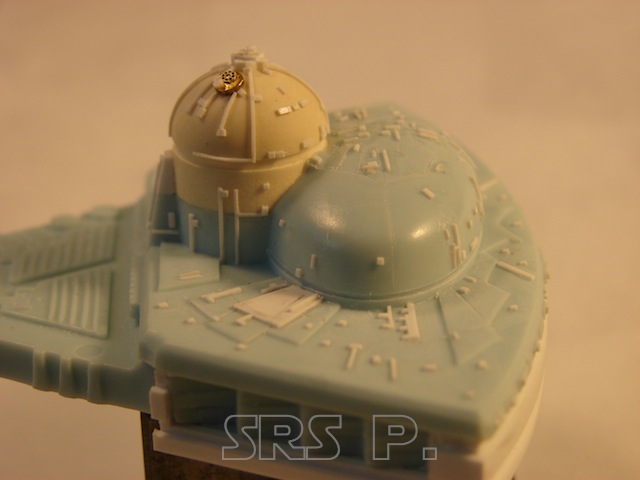

Completed bridge area with optional smaller bridge piece.
Inboard side of the port engine.
Outboard view of the up graded port engine.
Port engine again. Note the intricate grill work copied exactly form the filming model.
Complete view of the port engine.
Over view of more of the parts for the upgrade set created for JTGraphics.
Completed engine grill cover machined out of one piece of styrene.
The .040 thick styrene being milled by a .020 dia. cutter. Tedious work indeed!
